Twin Screw Plastic Extruder PE PVC PLA Plastic pellets filament cutting machine plastic beads making machine

SHJ-75 high torque twin screw extruder
SHJ-75 High Torque Twin Extruder
parameter:
The outer diameter of the screw is 71mm;
Groove depth 12mm;
Center distance 60mm
Main motor: 160-315kw;
L/D=36-60;
Rotation speed 400-800
Output 500-1500kg/h (specifically determined by production materials and technology)
Large production unit, suitable for blending modification, filling modification, reaction extrusion and various functional masterbatch production
The aspect ratio and granulation method can be adjusted according to the working materials and process.

Application:
PIPE, Granules, Sheet, Film, Profile, Plates, Filament, Pelletizing, Straw

Applicable Industries:

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

Electrical Standard:
The standard is electrically manufactured according to the JB/5420-2001 "Co-rotating Twin Screw Plastic Extruder" of the Ministry of Machinery of China.with CE standards.

Samples:
Maximum order quantity: 1 set


Product Detail:

1. PE PP plastic films/bags recycling machine is mainly used to recycling waste plastic PE/LDPE/LLDPE/PP films/bags, shopping
bag,PP woven bag, PP cement bags,PP Jumbo bag and so on.

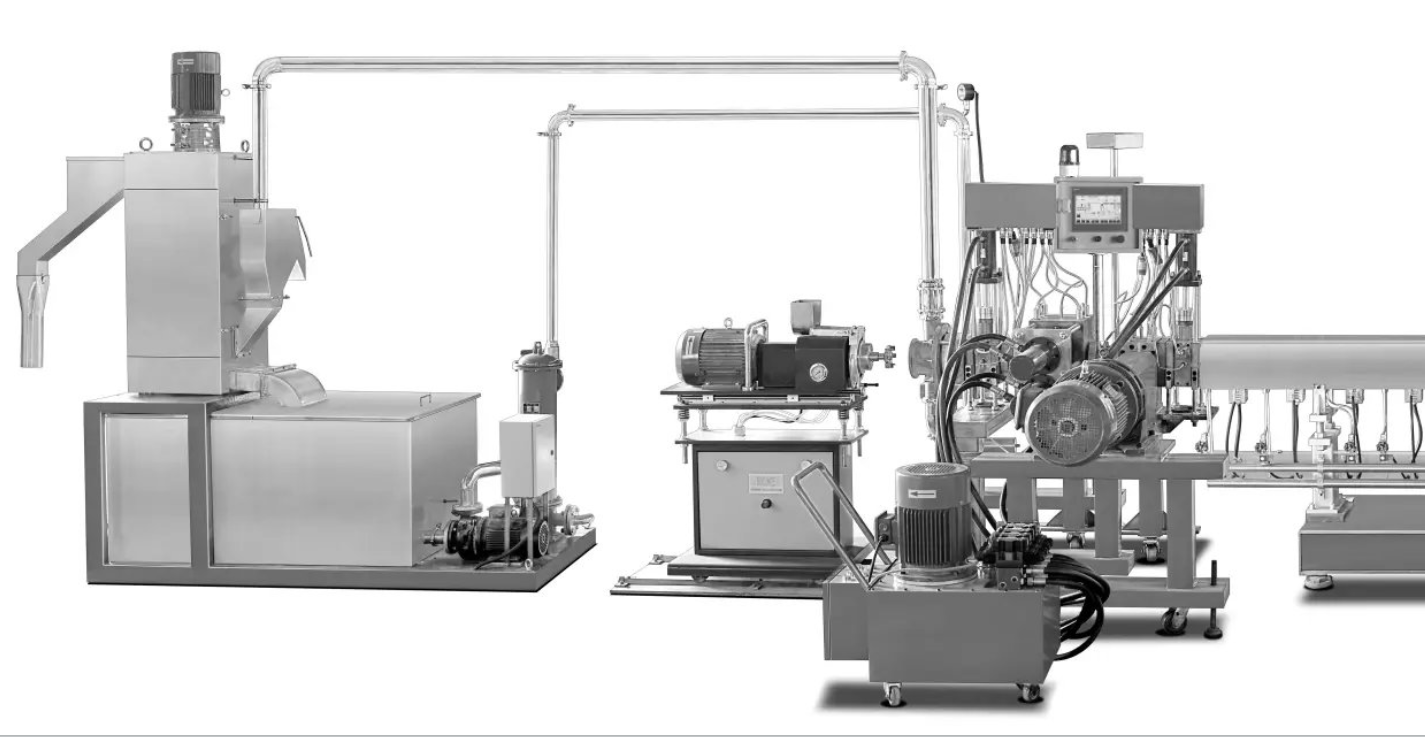

2. PE PP plastic films/bags recycling machine is designed and manufactured by MOOGE TECH. The waste dirty material go through
crushing, washing, drying, and collecting process will turn to be clean flakes for pelletizing. We also supply plastic pelletizing
line (plastic granulator) to make the clean flakes into pellets (granules). The renewable pellets (granules) can be made into
plastic barrel, plastic pipe, plastic frame, farm implement, machine components, and so on through extruding forming machine. They
are widely used in agriculture, construction, industry and our daily life. In this way, we achieve the reuse of waste plastic
recycling and the purpose of protecting our environment.
3.PE PP plastic films/bags recycling machine can easily remove sand oil dirties and other impurities, finally you will get clean
ideal PE PP flakes.
4.All your requirements of PE PP plastic films/bags recycling machine can be customized.

Packing:

FAQ:
● We are original manufacturer.
● If you interested in our products welcome to visit our Factory.
●We can send you engineers and make sure the high efficiency after-sales service if you need.
●We quipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly controlled by inspecting department.
● Each assembly is in charge by a master who has working experience for more than 15 years
● After all the equipment finished, we connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory.
● Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.

Nanjing Yanwei Machinery Co., Ltd. is specialized in the same double screw extruder as the core of the plastic polymer mixing modification equipment and related process and engineering field of technology development and auxiliary machinery research, development and manufacturing enterprises. The company integrates design, research and development, production, sales and technical support as one, to provide customers with customized equipment, and provide a complete set of turnkey engineering.
The company has many engineers, senior experts and experienced field commissioning engineers in the field of double screw (formerly Gansu Lanzhou Double Screw Research Institute); with machining center, CNC lathe, CNC boring machine, thread grinding machine and various machining equipment, strong processing ability, can process various types of thread components and cylinders, produce more than 200 sets, and exported to Vietnam, India, the Middle East, Europe, America, Africa and other regions and countries.
The company's products scope includes:
Plastic granulator:
nylon granulator, PP granulator, PE granulator, PC granulator, nylon fiber granulator, PVC granulator, filling masterbatch granulator, masterbatch granulator, PET granulator, degradation granulator, modified granulator, agglomeration granulator, elastomer granulator, SEBS granulator, experimental granulator, two-stage granulator, recycled plastic granulator, film granulator, sheet machine, degradation sheet machine, PET sheet machine, bottle flake granulator, 35 granulator, 50 granulator, 65 granulator,75 granulator, 95 granulator, air-cooled granulator, water-cooled granulator, underwater granulator
The company has fully implemented the ISO9001 quality management system, and has passed the European CE electrical safety certification."Do fine do fine" is our principle, "convenient for customers, responsible for customers" is our purpose, "quality products, timely service" is our commitment to customers.
We sincerely welcome customers and friends from home and abroad to our company to visit, technical exchange, business negotiations.
